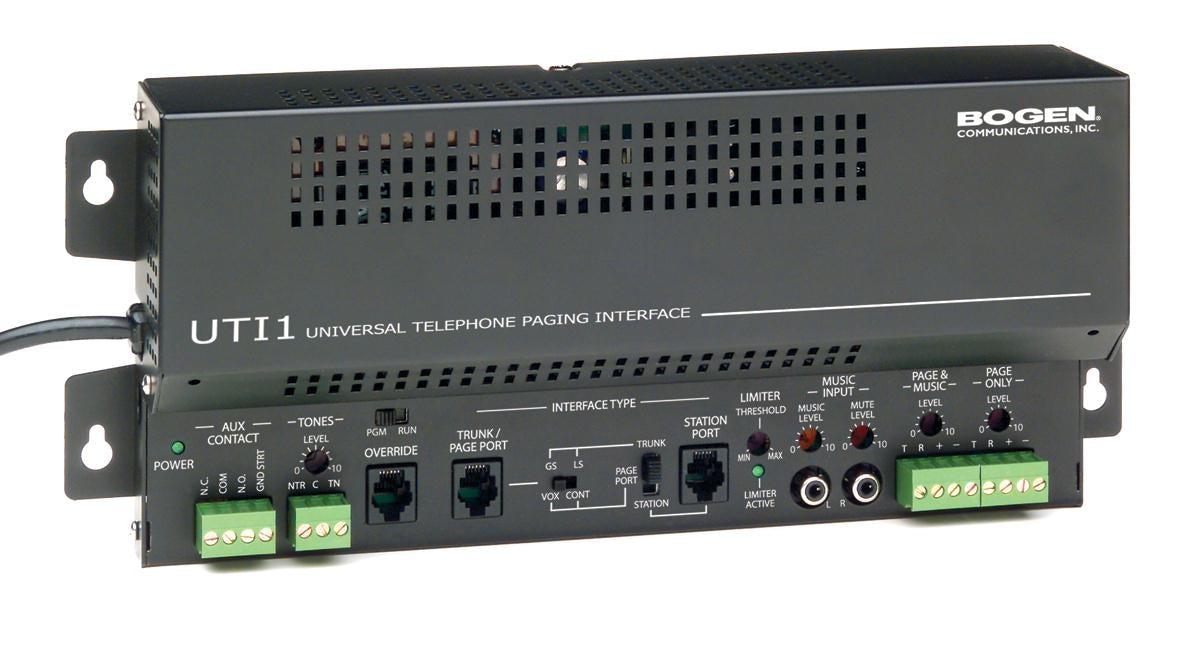

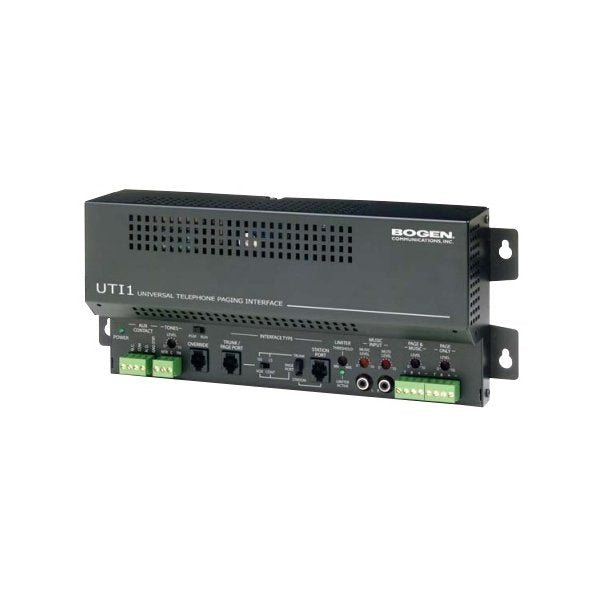

Bogen Single Zone Paging Controller
The UTI1 Universal Telephone Interface provides single-zone paging for one-way applications such as self-amplified speaker systems. It is compatible with all standard analog port types and includes two audio outputs with level controls, each of which can provide audio for 150 Bogen self-amplified speakers.
A 24V DC @ 1A internal power supply is available to power external equipment.
Features & Highlights
Single-zone paging
Telephone interfaces: loop start trunk, ground start trunk, station access (analog ring-up), page port contact closure activation, page port voice activation
Simple 2-switch interface setup
Override paging (using loop start trunk or page port contact closure activation)
Programmable activation of AUX contacts
C-form contact
Two audio outputs (Page Only and Page with Background Music) both with level controls
Each output can provide audio drive for 150 self-amplified speakers
High impedance transformer-isolated background music input with volume control
Variable music mute
Night Ringer (contact closure activation)
Tone Trigger (tone and duration selectable, closure activated)
Tone burst (2 to 7 sec), chime, and slow whoop tone selections
Pre-Announce/Confirmation Tone
Adjustable output limiter with threshold control and active indicator
Programmable timers control page duration (station and trunk)
DTMF programming
DTMF Block to help suppress DTMF tones over paging system
Non-volatile memory for setup data (no backup battery required)
Setup Tone to assist in volume setting
Plugable terminal strips
Microcontroller-based operation
Wall mounting flanges
Rack panel kit with security cover available (RPKUTI1 sold separately)
Two-Year Warranty
