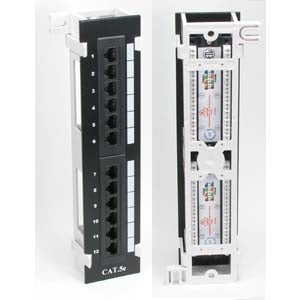

Cat 5E 110 Type Patch Panel 12 Port Vertical w/Bracket
Cat 5E 110 Type Patch Panel 12 Port Vertical w/Bracket
A modification to the traditional telephone wiring device that lets you punch your station cables to the block and then connect a standard line cord to the modular jack on the block to the modular jacks on your phone system.
This patch panel is made for optimum performance with black electrostatic powder-coated steel and 50 micron gold-plated contacts. Every panel comes with 110-type termination, while meeting and exceeding EIA/TIA TSB-40 Cat5E connecting hardware specifications. The clear numbering on both the front and back of each panel provides a quick, easy way to identify cable runs. This patch block accommodates top, bottom or side cable entry, and it also has a write-on designation label with a clear holder on the front and the rear.
Note: You will need a 110 Punch Down Tool to connect your station cables to the block
- Mounting Bracket Included
- UL listed
- Meets TIA/EIA-568B.2/568B.2-1 Cat.5E
- ISO/IEC 11801 and EN 50173-1 specification
- Support T568A : B wiring
- Wire diameter : 22 ~ 26AWG
- Insulation diameter range : 0.70 to 1.40mm
- Jack contacts : Phosphor bronze, 50micron gold plate over nickel plating.
- IDC contacts : Phosphor bronze, 50micron gold plate over nickel plating.
- Safty : UL1863
- Flamability : UL 94 VO
- Operating temperature : -40 to +70 dgree Celsius
- Weight : 0.85LBS
- 25 years warranty
- Carton qty: 24
- Carton weight: 23 LBS
- Dimensions : 10"(H) x 2 1/4" (W) x 1 3/4" (D)
