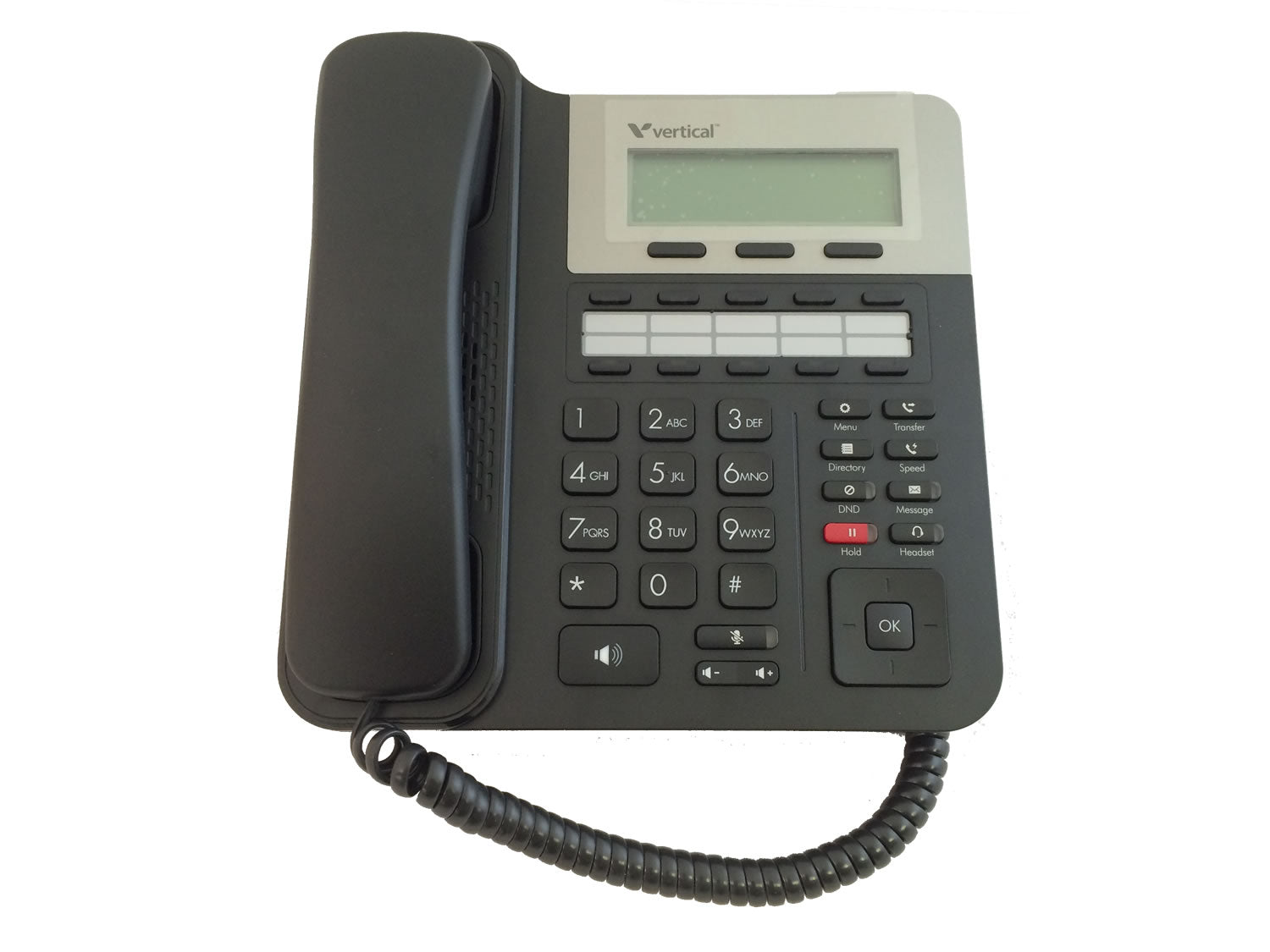

Vertical Summit 10 Button IP Phone

Vertical Summit 10 Button IP Phone

Description: Low-cost IP phone that is ideal for break rooms, reception areas, loading docks, etc. This simple phone uses paper-printed labels to identify the functions of the 10 programmable buttons. The phone is designed for simple deployment with support for LLDP-MED and DHCP to identify correct network settings and the Wave IP address. If no matching MAC address is already configured, then the phone will ask to be assigned to a specific extension.

Connection Type: IP Phone

Buttons: 10 programmable DESI label buttons and 3 multi-function buttons

Features Supported: All Wave IP button feature set.

Expansion Console: 12 button LSS add-on (with shift ability for 12 additional buttons)

Headset Jack: RJ-11 headset port

Screen: 5 lines gray scale backlit LCD

Speakerphone: Full-duplex

Power: POE or external power supply (sold separately)

Auto-Answer: Yes

VPN: Yes

Network Connection: 10/100/1000

Key Configuration Items: Phone can use LLDP-MED to get VLAN Information (requires switch that supports broadcasting LLDP-MED). Phone can use DHCP to receive Wave configuration information. Uses Wave on-board TFTP for initial setup. HTTP is used for subsequent configuration.
