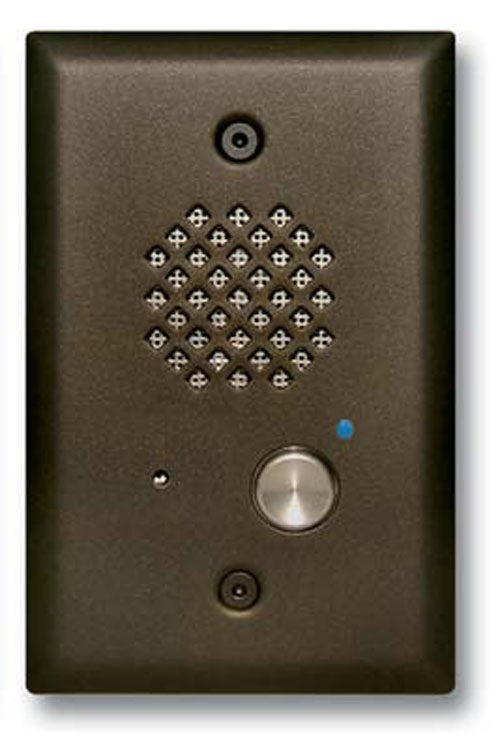

Viking E-40 Compact Entry Door Phone: Bronze
Viking E-40 Compact Entry Door Phone: Bronze
The E-40 Series Entry phones are compact, weather and vandal resistant, telephone line powered speaker phones designed to provide two-way handsfree communication. The E-40's compact size allows it to be mounted in a standard single gang electrical box. The E-40 is available in five different attractive finishes to match your door hardware, light fixtures, etc. Replacement E-40 faceplates (PNL40) can be purchased seperately and are available in all five standard finishes.
The E-40 entry phones can share a single phone line with house or small business telephones when used with a Viking model C-200 or C-2000A Entry Phone controller. The E-40 entry phones can also be connected to an unused analog station port (programmed for ring down) on a phone system or connected directly to a telephone line when used with a Viking model K-1900-5 auto dialer. The E-40 features microphone and speaker volume controls, selectable auto answer for monitoring and intelligent call progress detection for automatic hang-up when the call is completed. For extreme outdoor environments or corrosive atmospheres, the E-40 Series is available with Enhanced Weather Protection (EWP).
Applications
- Door or gate communication, business delivery entrances
- Use with a Viking C-200 to control one E-40 on a single phone line
- Use with a Viking C-2000A to control 1 to 4 E-40’s and door/gate control on a single phone line
- Provide unique front and back door chimes and paging when used with a Viking SLP-1 and C-2000A
- Residential, commercial and industrial door security
- Use with a Viking K-1900-5 for automatic speed dialing on tele- phone lines or analog PABX/KSU station ports
- Use on any analog PABX station port with programmable ringdown capability
Features
- Compact size: Front panel is the size of a typical single gang mid- size wall plate
- Mounting: Flush mounts in any single gang (1.7” deep minimum) electrical box (single gang old work rough-in box included) or surface mounts in a Viking model VE-3x5 (not included)
- Available in 5 standard faceplate finishes: Brushed Stainless Steel, Oil Rubbed Bronze, Polished Brass, Satin Black and Satin White
- PNL-40 faceplates: Replacement faceplates with matching screws available in all five standard finishes
- Weather Resistant Features: Mylar speaker, faceplate gasket, mic and speaker gasket, internally sealed (IP67) push button switch, self draining mic mount and UV stable weather resistant powder coating (excluding E-40-SS Stainless Steel faceplate)
- Optional Enhanced Weather Protection (EWP) available
- Vandal Resistant Features: 16 gauge polished brass or 18 gauge stainless steel faceplate, stainless steel push button, stainless steel speaker screen, scratch resistant powder coating, hex drive mounting screws
- Telephone line powered
- Microphone and speaker volume controls
- Programmable Intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out
- Selectable auto answer feature for monitoring
- Programmable VOX (mic/speaker) switching speed
Specifications
- Power: Telephone line powered (18 VDC/20mA minimum)
- Dimensions: Faceplate: 123.8mm x 79.4mm x 4.6mm (4.875” x 3.125” x 0.18”), Rough-in box (Allied Molded 9331): 86.4mm x 61mm x 63.5mm (3.4” x 2.4” x 2.5”)
- Shipping Weight: 0.45 kg (1.0 lbs)
- Operating Temperature: -32° C to 54° C (-25° F to 130° F)
- Humidity: Standard model: 5% to 95% non-condensing humidity, EWP model: up to 100% humidity
- Speaker Volume: Approximately 62db maximum @ 1m
- Ring Voltage: 25V AC RMS minimum (for auto answer)
- CPC Disconnect Time: 300ms minimum
- REN: 0.8A
- Connections: (2) gel-filled butt connectors
